【JT-6S-350】Packing Speed: Max 50 bags/min. Bag Length: 100–450mm(L). Bag Width: 260–350mm(W). Filling Range: 0-3000g. 【JT-8S-240】Packing Speed: Max 50 bags/min. Bag Length: 100–300mm(L). Bag Width: 80–240mm(W). Filling Range: 0-3000g.
We support transactions via third-party trade assurance platforms (e.g., Alibaba, Made-in-China).
We offer both standardized packaging machines and fully customized automation solutions to meet your exact production requirements.

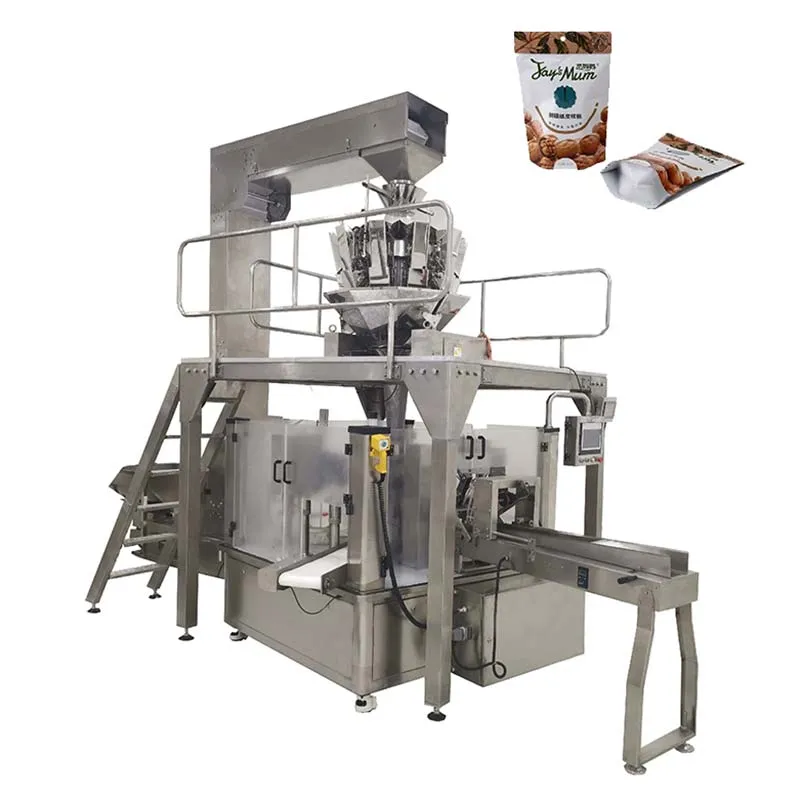

Full automatic premade pouch bagger, featured with rapid reaction, reliability and quick changeover, is ideal for a large variety of bag types and range. Equipped with Z-shape bucket elevator and combination scale, it is widely applied to candies, microwave popcorn, cookies, nuts, rice, coffee beans, crops, peanuts, etc.
| Model | JT-6S-350 | JT-8S-240 | |

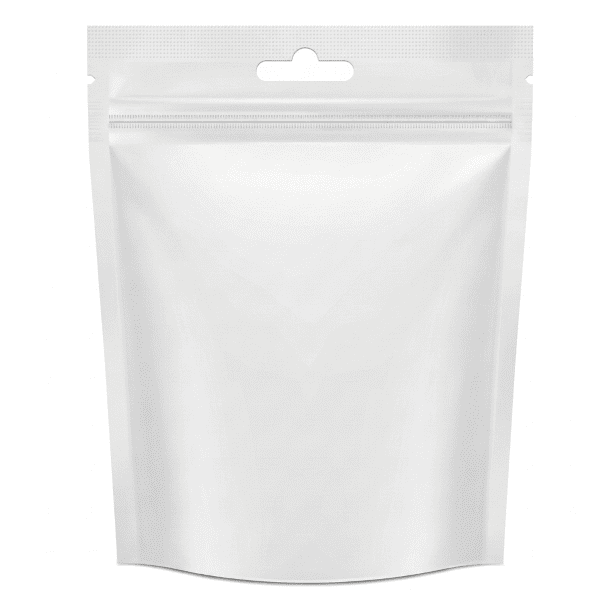

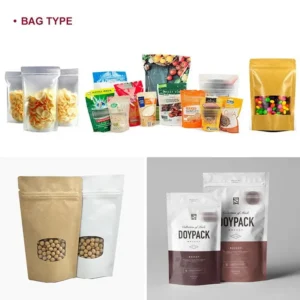

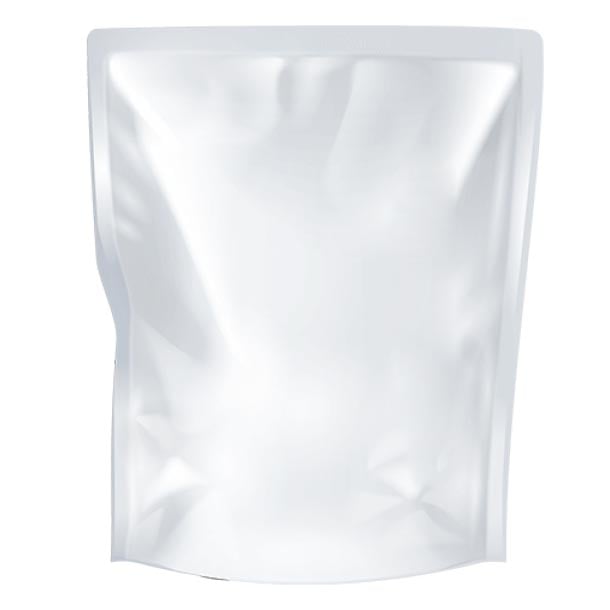

| Pouch Type | Pillow bag, 3 & 4 side seal bag | Stand-up bag, Gusseted bag, Handle bag, Spout bag, Paper bag, Zipper bag (for option) | |
| Working Station | Six working station | Eight working station | |
| Pouch | W | 260-350mm 100-450mm | 80-240mm 100-300mm |
| L | |||
| Capacity | Up to 50 bags/ min (product property and filling range count) | ||
| Filling Range | 0-3000g | ||
| Dosing Systems | Multi-head combination scale, Linear scale, Volumetric cup, Auger filler, Piston filler, etc. | ||
| Voltage | AC380V/50Hz, three phases (or customize according to specific demands) | ||
| Power | 3.0KW | 3.5KW | |
| Air Sourse | 0.4 CBM/ min (offered by the user) | ||
| Machine’s Dimension | 2200x1850x1600mm | ||
| Machine’s Weight | 1700kg | 1800kg | |
●Assembled with multi-head combination scale to achieve precise material measuring and filling
●Assembled with Z-shape bucket elevator to achieve material lifting automatically
●SIEMENS PLC & HMI Touch Screen
●Equipped with frequency converter and SMC cylinder
●Full 304# stainless steel construction
●Wide application to various bag types and products
●Self-diagnosis: No filling and nor sealing when it is detected that the bag is not open or not open completely
●Auto-alarming if there’s something wrong with the air pressure or heating elements
●Auto-break occurs when the machine stops to achieve self-protection
●Bag width could be adjusted automatically by one button on the motor setup
●Oil-free vacuum pump to avoid pollution
●Customized zipper opening to avoid broken/ deformed bags
●Perfect sealing and excellent appearance to improve product level
●Conform to GMP and HACCP
●Applicable bag material: Laminated films, monolayer PE films, PP, and paper
JT-series pre-made pouch bagger can be clarified into 8 working stations and 6 working stations in terms of station amounts in one machine. Specifically, the whole processes are involved in the following stations:
| 1. | Pouch-picking Station (Required) |
| 2. | Date-printing Station (Required) |
| 3. | Pouch-opening Station (Required) |
| 4. | Material-filling Station-1 (Required) |
| 5. | Material-filling Station-2 (Optional) |
| 6. | Air-exhausting Station (Optional) |
| 7. | Matrial-detecting Station (Optional) |
| 8. | Sealing and Outputting Station (Required) |
Complimentary Consultations: Providing professional advice to kickstart your project.
Industry Expertise: Sharing deep technical insights and market knowledge.
In-house Packaging Trials: Performance testing of your materials and products at our facility.
Solution Engineering: Custom-designed solutions paired with detailed Project Design Plans.
Automated Machinery & Systems Engineering: Precision design tailored to your production needs.
Site-Specific Assessment: In-depth analysis of your unique facility parameters and technical requirements.
Execution & Delivery: Seamless implementation and turnkey delivery of your specialized solutions.
We offer a comprehensive 2-year spare parts package for all critical wear items. By integrating standardized components from globally recognized brands, we ensure that maintenance is simple and parts are easily accessible worldwide, keeping your production lines running at peak performance.
Experience peace of mind with our 24-hour remote diagnostic capabilities. Our advanced system allows for real-time troubleshooting and software optimization, resolving technical issues swiftly without the need for on-site visits.
Maintenance is made easy with our structured support resources. Every machine comes with annual and daily maintenance schedules, technical repair guides, and high-definition video tutorials to prevent issues before they arise.
We prioritize user-friendliness by providing all instructional content—including training videos and operation manuals—in the local language of our clients. This ensures your staff can operate our high-speed machinery with confidence and precision.
