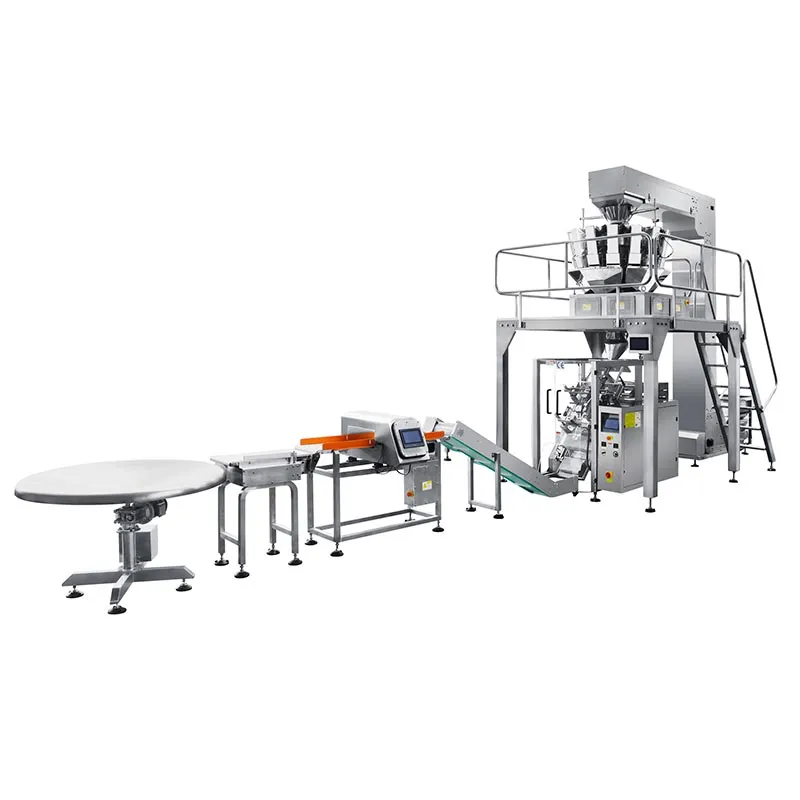

Inclined Form Fill Seal Machine Packing Production Line JT-520S

Packing Speed: 30—50 bags/min. Bag Length: 80–370mm(L). Bag Width: 60–250mm(W). Max width of roll film: 520mm.

Trade Assurance

We support transactions via third-party trade assurance platforms (e.g., Alibaba, Made-in-China).

Standard & Tailored Solutions

We offer both standardized packaging machines and fully customized automation solutions to meet your exact production requirements.

Application:

Package fragile products. They are well integrated with weighing and metering systems for fragile products such as potatoes, fruits, baked goods, biscuits, pastries and other general fragile products.
Packing heavy products. The inclined packing process can effectively reduce the impact of packing items on the bag, which is usually used to pack live fish, frozen poultry, seafood and heavy hardware.

Technical Parameters:

Type	JT-520S
Bag length	80-370mm(L)
Bag width	60-250mm(W)
Max width of roll film	520mm
Packing speed	30-50bags/min
Air consumption	0.65mpa
Gas consumption	0.4m³/min
Power voltage	220VAC/60HZ
Power	3KW
Dimension	(L)1500mm(W)1170mm(H)1500mm
Deadweight of machine	800Kg

Technology Charateristic:

Full-automatic weigh-form-fill-seal type, efficient and simple to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Use superior mechanical components, reduce the wear out loss.
Easy to install film, auto correcting the excursion of the film.
Apply advanced operating system, easy to use and reprogramable.
The heat transfer printer & automatic film correction motor and anti-static device are for optional.
Stainless steel frame.
Servo driven film pulling system.
Photo sensor for automatic tracking eye marks.
Hot printer and film feeding system synchronous working together.

Applicable Materials

Nuts Packaging

Chips Packaging

Penne / Fusilli / Rotini / Macaroni / Rigatoni

Candy Packaging

Rock Sugar Packaging

Sugar Cubes Packaging

Frozen Food Packaging

French Fries Packaging

Popcorn Packaging

Cheese puffs Packaging

Pet Food Packaging

Animal Feed Packaging

Beans Packaging

Rice packaging

Oatmeal Packaging

Seeds Packaging

Grains Packaging

Corn Packaging

Wheat Packaging

Plastic Granules Packaging

Resin Powder Packaging

Washing Powder Packaging

Bag Styles

Pillow Bag

Side Gusset Bag

Flat Bottom Bag

Quad Seal Bag / Four Corner Seal Bag

Heat Sealed Perforated Stand Up Pouch

Bag Type Gallery

Videos

High-Speed 520 VFFS Packaging Machine with 20-Head Multihead Weigher

Model 520 VFFS Packaging Machine with Multihead Weigher and Inline Labeling System

JT520 Fully Automatic Vertical Form-Fill-Seal (VFFS) Machine

Automatic 520 Vertical Form Fill Seal (VFFS) Pillow Bag Packing Machine with Combination Scale

Model 600 Snack Chips & French Fries VFFS Packaging Machine with 14-Head Weigher & Nitrogen Flushing

Optional Accessories

14 Heads Weigher JT-14

10 Heads Weigher JT-10

JT-4 Four Heads Weigher

JT-2 Two Heads Weigher

Rotary Volumetric Cup Filler

JT-7-II Metal Detector

JT-7 Weight Detecting Machine

Weight Detecting Machine JT-200

JT-350 Z-shape Automatic Elevator

JT-390 Large Slanting Elevator

JT-130-2 Finished Product Conveyor

Platform

FAQ

How to find a Packing machine suitable for my product?

Tell us about your product details and packing requirements

Dimension of the bag(if you don’t have, send us a sample or draft drawing)

What product do you want to pack?

The weight of each bag？

Can you send engineer service oversea?

Yes, and you need to pay.According to save your cost, we will send you a video of the installation of the machine.

How can we make sure about the machine’s quality after we paid?

Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and check the machine.

How can you guarantee I will get the machine if I paid?

We have the business license and certificates. Optional third-party Trade Assurance via major B2B platforms (e.g., Alibaba or Made-in-China, where our official stores are active and verified), or direct contract options as preferred.

Payment Method?

30% deposit, 70% before shipping. (Specific payment terms shall be subject to mutual agreement and finalized in the formal contract.)
We accept T/T, L/C, DDP etc.

Advance deposit upon order, with remaining balance payments structured post-dispatch and upon final inspection (strictly subject to the terms in the signed contract).

How can I contact customer support?

You can reach our support team via the contact form, email, or live chat available on our website.

Services & Support

1，Expert Guidance

Complimentary Consultations: Providing professional advice to kickstart your project.
Industry Expertise: Sharing deep technical insights and market knowledge.
In-house Packaging Trials: Performance testing of your materials and products at our facility.
Solution Engineering: Custom-designed solutions paired with detailed Project Design Plans.

2，Engineering & Systems Design

Automated Machinery & Systems Engineering: Precision design tailored to your production needs.
Site-Specific Assessment: In-depth analysis of your unique facility parameters and technical requirements.
Execution & Delivery: Seamless implementation and turnkey delivery of your specialized solutions.

3，Reliable Parts Supply & Minimal Downtime

We offer a comprehensive 2-year spare parts package for all critical wear items. By integrating standardized components from globally recognized brands, we ensure that maintenance is simple and parts are easily accessible worldwide, keeping your production lines running at peak performance.

4，24/7 Remote Technical Support

Experience peace of mind with our 24-hour remote diagnostic capabilities. Our advanced system allows for real-time troubleshooting and software optimization, resolving technical issues swiftly without the need for on-site visits.

5，Proactive Maintenance Ecosystem

Maintenance is made easy with our structured support resources. Every machine comes with annual and daily maintenance schedules, technical repair guides, and high-definition video tutorials to prevent issues before they arise.

6，Localized Training & Documentation

We prioritize user-friendliness by providing all instructional content—including training videos and operation manuals—in the local language of our clients. This ensures your staff can operate our high-speed machinery with confidence and precision.
