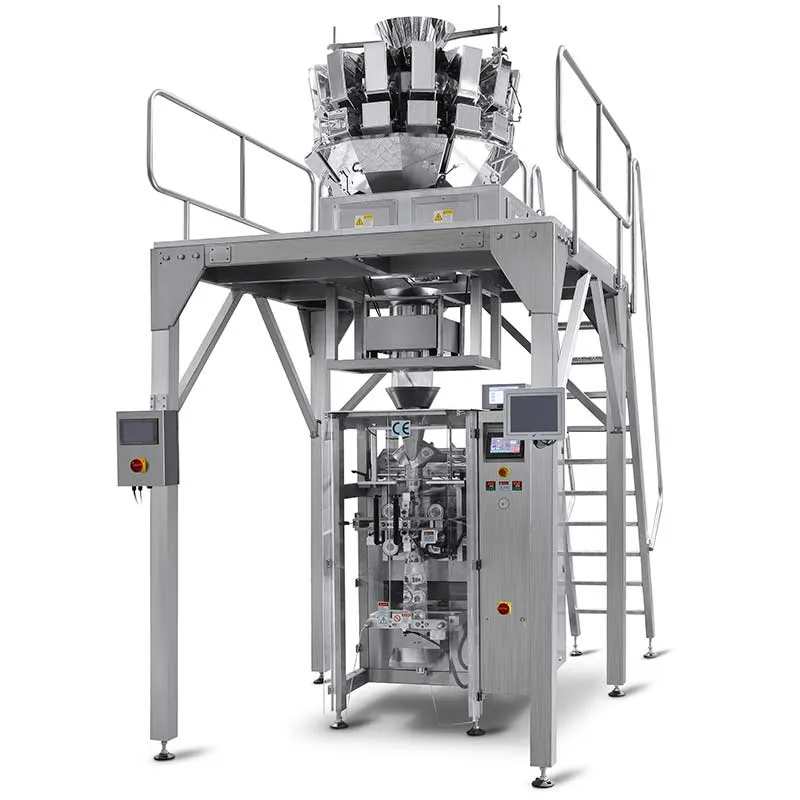

High-speed Packaging Machine JT- 520V

Packing Speed: Max 180 bags/min. Bag Length: 80–370mm(L). Bag Width: 60–250mm(W). Max width of roll film: 520mm.Suitable for nuts, dried fruit, puffed food, potato chip, shrimp roll, pistachio, peanut, popcorn, jelly, candy, chocolate, frozen food, pet food etc.

Get a Quote

Trade Assurance

We support transactions via third-party trade assurance platforms (e.g., Alibaba, Made-in-China).

Standard & Tailored Solutions

We offer both standardized packaging machines and fully customized automation solutions to meet your exact production requirements.

Application:

Suitable for nuts, dried fruit, puffed food, potato chip, shrimp roll, pistachio, peanut, popcorn, jelly, candy, chocolate, frozen food, pet food etc.

Technical Parameters:

Type	JT-520V
Bag length	50–400mm(L)
Bag width	100-250mm(W)
Max roll film width	520mm
Packing speed	Max. 180bag/min
Air consumption	0.4m³/min 0.7Mps
Power voltage	5KW 220V 50/60HZ
Dimension	（L）1600 * (W)1170 * (H) 1610mm
Net weight	950KG

Technology Charateristic:

Use international renowned electrical, good performance, stable and reliable.
Three servo control, continuous film pulling high-speed packaging, up to 180 packs per minute.
Automatic correction function, convenient, intelligent.
Packing speed is fast, the labor cost is effectively saved, and less land occupation.
Multi language interface to choose.

Applicable Materials

Nuts Packaging

Penne / Fusilli / Rotini / Macaroni / Rigatoni

Candy Packaging

Chips Packaging

Pet Food Packaging

Frozen Food Packaging

Cheese puffs Packaging

French Fries Packaging

Popcorn Packaging

Rice packaging

Rock Sugar Packaging

Sugar Cubes Packaging

Oatmeal Packaging

Grains Packaging

Beans Packaging

Seeds Packaging

Animal Feed Packaging

Plastic Granules Packaging

Resin Powder Packaging

Washing Powder Packaging

Bag Styles

Pillow Bag

Side Gusset Bag

Flat Bottom Bag

Quad Seal Bag / Four Corner Seal Bag

Heat Sealed Perforated Stand Up Pouch

Bag Type Gallery

Videos

High-Speed 520 VFFS Packaging Machine with 20-Head Multihead Weigher

High-Speed 520 Continuous VFFS Packing Line with Multihead Combination Scale (120+ BPM)

Continuous Motion High-Speed VFFS Packaging Machine with Multihead Weigher (120 Bags/Min)

Continuous Motion High-Speed VFFS Packaging Machine with Multihead Weigher (110 Bags/Min)

Continuous Motion High-Speed VFFS Packaging Machine with Multihead Weigher (92 Bags/Min)

JT520 Fully Automatic Vertical Form-Fill-Seal (VFFS) Machine

Model 520 VFFS Packaging Machine with Multihead Weigher and Inline Labeling System

Optional Accessories

14 Heads Weigher JT-14

10 Heads Weigher JT-10

JT-4 Four Heads Weigher

JT-2 Two Heads Weigher

Rotary Volumetric Cup Filler

JT-7-II Metal Detector

JT-7 Weight Detecting Machine

Weight Detecting Machine JT-200

JT-350 Z-shape Automatic Elevator

JT-390 Large Slanting Elevator

JT-130-2 Finished Product Conveyor

Platform

FAQ

How to find a Packing machine suitable for my product?

Tell us about your product details and packing requirements

Dimension of the bag(if you don’t have, send us a sample or draft drawing)

What product do you want to pack?

The weight of each bag？

Can you send engineer service oversea?

Yes, and you need to pay.According to save your cost, we will send you a video of the installation of the machine.

How can we make sure about the machine’s quality after we paid?

Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and check the machine.

How can you guarantee I will get the machine if I paid?

We have the business license and certificates. Optional third-party Trade Assurance via major B2B platforms (e.g., Alibaba or Made-in-China, where our official stores are active and verified), or direct contract options as preferred.

Payment Method?

30% deposit, 70% before shipping. (Specific payment terms shall be subject to mutual agreement and finalized in the formal contract.)
We accept T/T, L/C, DDP etc.

Advance deposit upon order, with remaining balance payments structured post-dispatch and upon final inspection (strictly subject to the terms in the signed contract).

How can I contact customer support?

You can reach our support team via the contact form, email, or live chat available on our website.

Services & Support

1，Expert Guidance

Complimentary Consultations: Providing professional advice to kickstart your project.
Industry Expertise: Sharing deep technical insights and market knowledge.
In-house Packaging Trials: Performance testing of your materials and products at our facility.
Solution Engineering: Custom-designed solutions paired with detailed Project Design Plans.

2，Engineering & Systems Design

Automated Machinery & Systems Engineering: Precision design tailored to your production needs.
Site-Specific Assessment: In-depth analysis of your unique facility parameters and technical requirements.
Execution & Delivery: Seamless implementation and turnkey delivery of your specialized solutions.

3，Reliable Parts Supply & Minimal Downtime

We offer a comprehensive 2-year spare parts package for all critical wear items. By integrating standardized components from globally recognized brands, we ensure that maintenance is simple and parts are easily accessible worldwide, keeping your production lines running at peak performance.

4，24/7 Remote Technical Support

Experience peace of mind with our 24-hour remote diagnostic capabilities. Our advanced system allows for real-time troubleshooting and software optimization, resolving technical issues swiftly without the need for on-site visits.

5，Proactive Maintenance Ecosystem

Maintenance is made easy with our structured support resources. Every machine comes with annual and daily maintenance schedules, technical repair guides, and high-definition video tutorials to prevent issues before they arise.

6，Localized Training & Documentation

We prioritize user-friendliness by providing all instructional content—including training videos and operation manuals—in the local language of our clients. This ensures your staff can operate our high-speed machinery with confidence and precision.
