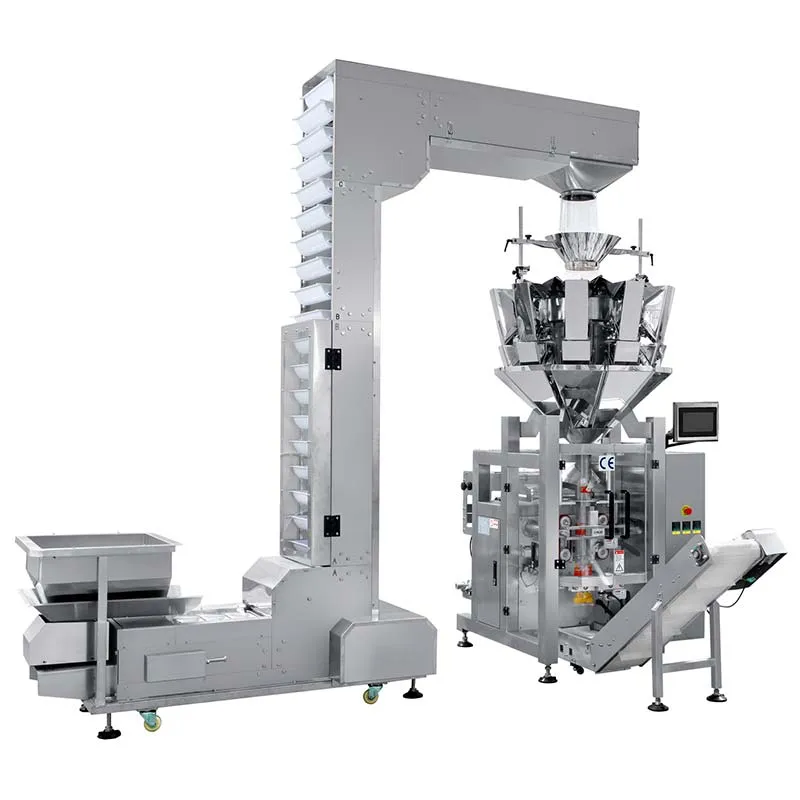

All-in-One Packaging Machine JT-400W

All-in-One Packaging Machine JT-400W

Packing Speed: 5—60 bags/min. Bag Length: 50–300mm(L). Bag Width: 50–200mm(W). The max. roll film width: 420mm. Application: The classification of food, frozen food, coffee beans, oats, sugar, salt (film), rice, pet food, puffed food, peanut, popcorn, nuts, seeds, hardware etc.

Get a Quote
Email

Trade Assurance

We support transactions via third-party trade assurance platforms (e.g., Alibaba, Made-in-China).

Standard & Tailored Solutions

We offer both standardized packaging machines and fully customized automation solutions to meet your exact production requirements.

Application:

The classification of food, frozen food, coffee beans, oats, sugar, salt (film), rice, pet food, puffed food, peanut, popcorn, nuts, seeds, hardware etc.

Technical Parameter:

Type

JT-400W

Control system

PLC+English interface

Packing speed

5-60 bags/min

Display

7 inch touch screen

Weigher type

10/14 heads

Weighing hopper volume

1.3L/2.5L

Weighing accuracy

±0.5-1.5g

Single weighing range

10-800g//20-1500g

Pillow bag size

Bag length

50-300mm(L)

Bag width

50-200mm(W)

Stand bag size

Bag length

50-300mm(L)

Bag front width

50-120mm(W)

Bag side width

40-80mm

The max. roll film width

420mm

Type of sealing

Pillow bag, standing bag

Packing material

OPP/CPP,OPP/CE,PET/PE, etc

Measuring range

30-1200ml

Gas consumption

0.3m3/min

Air consumption

0.65mpa

Film pulling driven system

Servo motor

Horizontal sealing driven system

Cylinder / Servo motor

Technology Charateristic:

  • PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
  • Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
  • Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
  • External film releasing mechanism: simpler and easier installation of packing film.
  • Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple.
  • Close down type mechanism , defending powder into inside of machine.

Applicable Materials

Chips Packaging

Chips Packaging

Penne / Fusilli / Rotini / Macaroni / Rigatoni

Penne / Fusilli / Rotini / Macaroni / Rigatoni

Nuts Packaging

Nuts Packaging

Cashew Packaging

Cashew Packaging

Candy Packaging

Candy Packaging

Rock Sugar Packaging

Rock Sugar Packaging

Sugar Cubes Packaging

Sugar Cubes Packaging

Coffee Bean Packaging

Coffee Bean Packaging

Popcorn Packaging

Popcorn Packaging

French Fries Packaging

French Fries Packaging

Cheese puffs Packaging

Cheese puffs Packaging

Beans Packaging

Beans Packaging

Oatmeal Packaging

Oatmeal Packaging

Grains Packaging

Grains Packaging

Seeds Packaging

Seeds Packaging

Rice packaging

Rice packaging

Pillow Bag

Pillow Bag

Side Gusset Bag

Side Gusset Bag

Flat Botatom Bag

Flat Botatom Bag

Quad Seal Bag / Four Corner Seal Bag

Quad Seal Bag / Four Corner Seal Bag

Heat Sealed Perforated Stand Up Pouch

Heat Sealed Perforated Stand Up Pouch

All-in-One Model 400 VFFS Packing System with 10-Head Weigher (Compact Footprint)

High-Speed All-in-One 400 Continuous VFFS Packing Line with Combination Scale

14 Heads Weigher JT-14

14 Heads Weigher JT-14

10 Heads Weigher JT-10

10 Heads Weigher JT-10

JT-7-II Metal Detector

JT-7-II Metal Detector

JT-7 Weight Detecting Machine

JT-7 Weight Detecting Machine

Weight Detecting Machine JT-200

Weight Detecting Machine JT-200

JT-350 Z-shape Automatic Elevator

JT-350 Z-shape Automatic Elevator

JT-390 Large Slanting Elevator

JT-390 Large Slanting Elevator

JT-130-2 Finished Product Conveyor

JT-130-2 Finished Product Conveyor

How to find a Packing machine suitable for my product?

Tell us about your product details and packing requirements

Dimension of the bag(if you don’t have, send us a sample or draft drawing)

What product do you want to pack?

The weight of each bag？

Can you send engineer service oversea?

Yes, and you need to pay.According to save your cost, we will send you a video of the installation of the machine.

How can we make sure about the machine’s quality after we paid?

Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and check the machine.

How can you guarantee I will get the machine if I paid?

We have the business license and certificates. Optional third-party Trade Assurance via major B2B platforms (e.g., Alibaba or Made-in-China, where our official stores are active and verified), or direct contract options as preferred.

Payment Method?

30% deposit, 70% before shipping. (Specific payment terms shall be subject to mutual agreement and finalized in the formal contract.)
We accept T/T, L/C, DDP etc.

Advance deposit upon order, with remaining balance payments structured post-dispatch and upon final inspection (strictly subject to the terms in the signed contract).

How can I contact customer support?

You can reach our support team via the contact form, email, or live chat available on our website.
1，Expert Guidance

Complimentary Consultations: Providing professional advice to kickstart your project.
Industry Expertise: Sharing deep technical insights and market knowledge.
In-house Packaging Trials: Performance testing of your materials and products at our facility.
Solution Engineering: Custom-designed solutions paired with detailed Project Design Plans.

2，Engineering & Systems Design

Automated Machinery & Systems Engineering: Precision design tailored to your production needs.
Site-Specific Assessment: In-depth analysis of your unique facility parameters and technical requirements.
Execution & Delivery: Seamless implementation and turnkey delivery of your specialized solutions.

3，Reliable Parts Supply & Minimal Downtime

We offer a comprehensive 2-year spare parts package for all critical wear items. By integrating standardized components from globally recognized brands, we ensure that maintenance is simple and parts are easily accessible worldwide, keeping your production lines running at peak performance.

4，24/7 Remote Technical Support

Experience peace of mind with our 24-hour remote diagnostic capabilities. Our advanced system allows for real-time troubleshooting and software optimization, resolving technical issues swiftly without the need for on-site visits.

5，Proactive Maintenance Ecosystem

Maintenance is made easy with our structured support resources. Every machine comes with annual and daily maintenance schedules, technical repair guides, and high-definition video tutorials to prevent issues before they arise.

6，Localized Training & Documentation

We prioritize user-friendliness by providing all instructional content—including training videos and operation manuals—in the local language of our clients. This ensures your staff can operate our high-speed machinery with confidence and precision.
